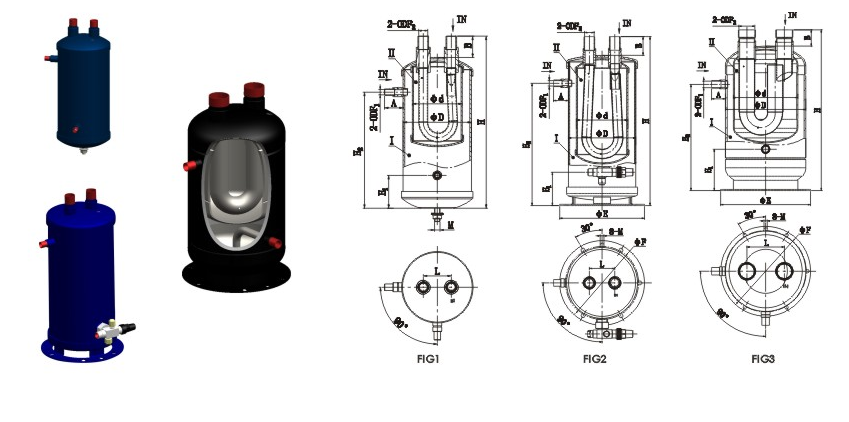

The accumulator is installed at the compressor suction to prevent liquid refrigerant slugging; the receiver at the condenser outlet stabilizes refrigerant supply. Kilterra 40XX/44XX heat-exchange accumulators integrate internal heat exchange with liquid separation - separation plus suction/liquid heat exchange in one unit for significantly better system efficiency.
Frequently Asked Questions
- What is the difference between accumulator and receiver? - Accumulator sits at suction to prevent slugging; receiver at condenser outlet stabilizes supply.
- Why do heat pumps need larger accumulators? - Defrost sends the heaviest liquid return; undersized volume causes slugging.
- What does the 44XX heat exchange do? - Subcools liquid and superheats suction gas for better efficiency.
- What does slugging sound like? - A crunching, gravel-chewing noise from the compressor.
Selection Reference
- Size volume by compressor displacement and system capacity (heat pumps need larger volume)
- Choose vertical or horizontal by installation space
- Choose 44XX heat-exchange series when subcooling gain is needed
- Pressure rating must cover high-side peaks
More Advice
- Check the oil return port for blockage regularly
- Listen for liquid slugging noise from the compressor
- For defrost-heavy systems verify volume is sufficient
- Clean the interior during major service
For 37 years Kilterra has focused on one thing: build refrigeration components right, deliver them on time. Accumulator / Receiver supports OEM/ODM customization - factory visits, sample testing and volume partnerships are welcome.
